Binocular Monochromatic AR Smart Glasses

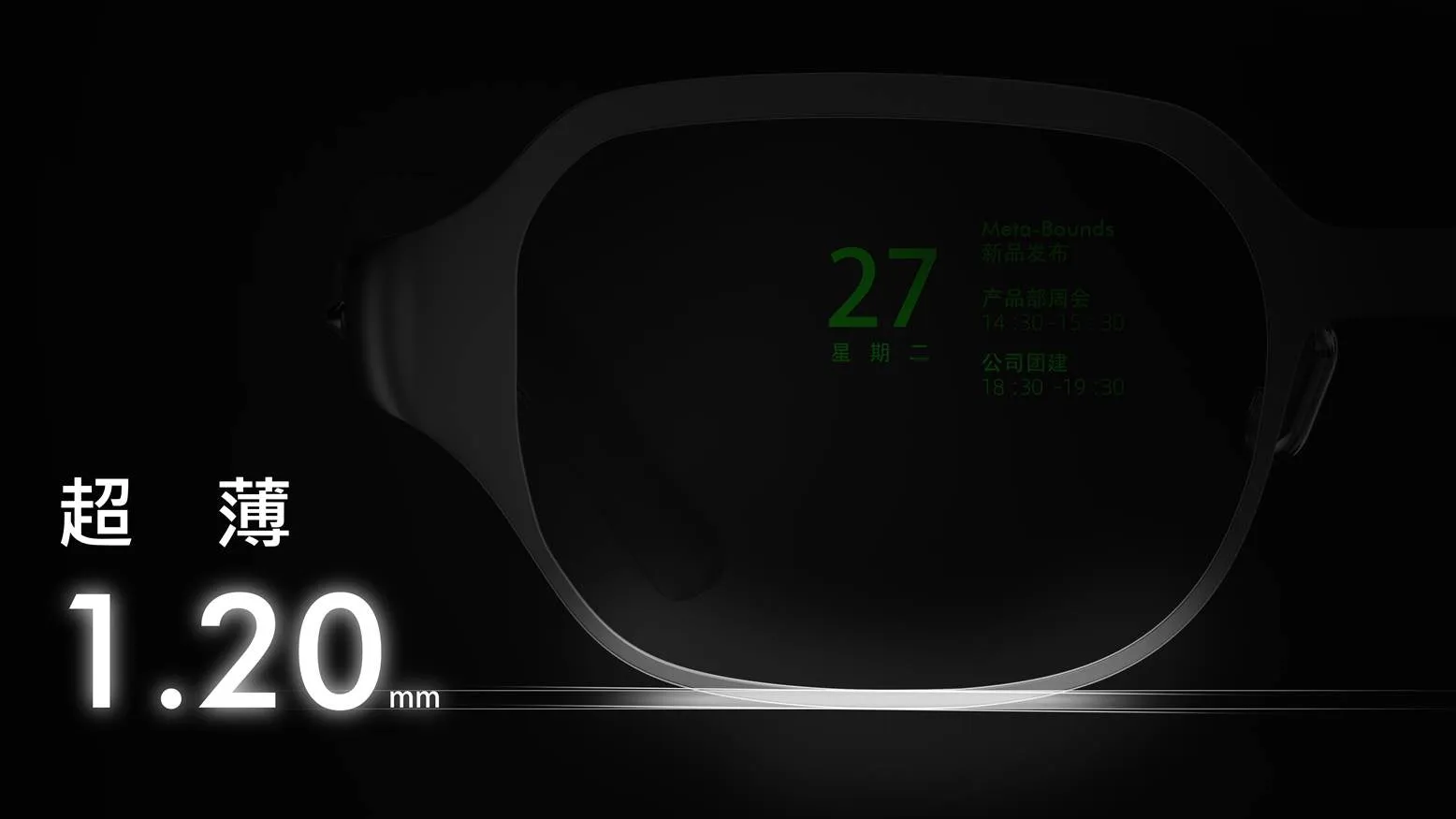

Ultra thin frame
The thinnest part is designed to be 1.20mm, which is extremely close to the traditional glasses design to ensure the frame's strength.
* The frame width of traditional glasses is generally 0.8mm
Refractive index: 1.59/1.60
Full-color Refractive Index: 1.67

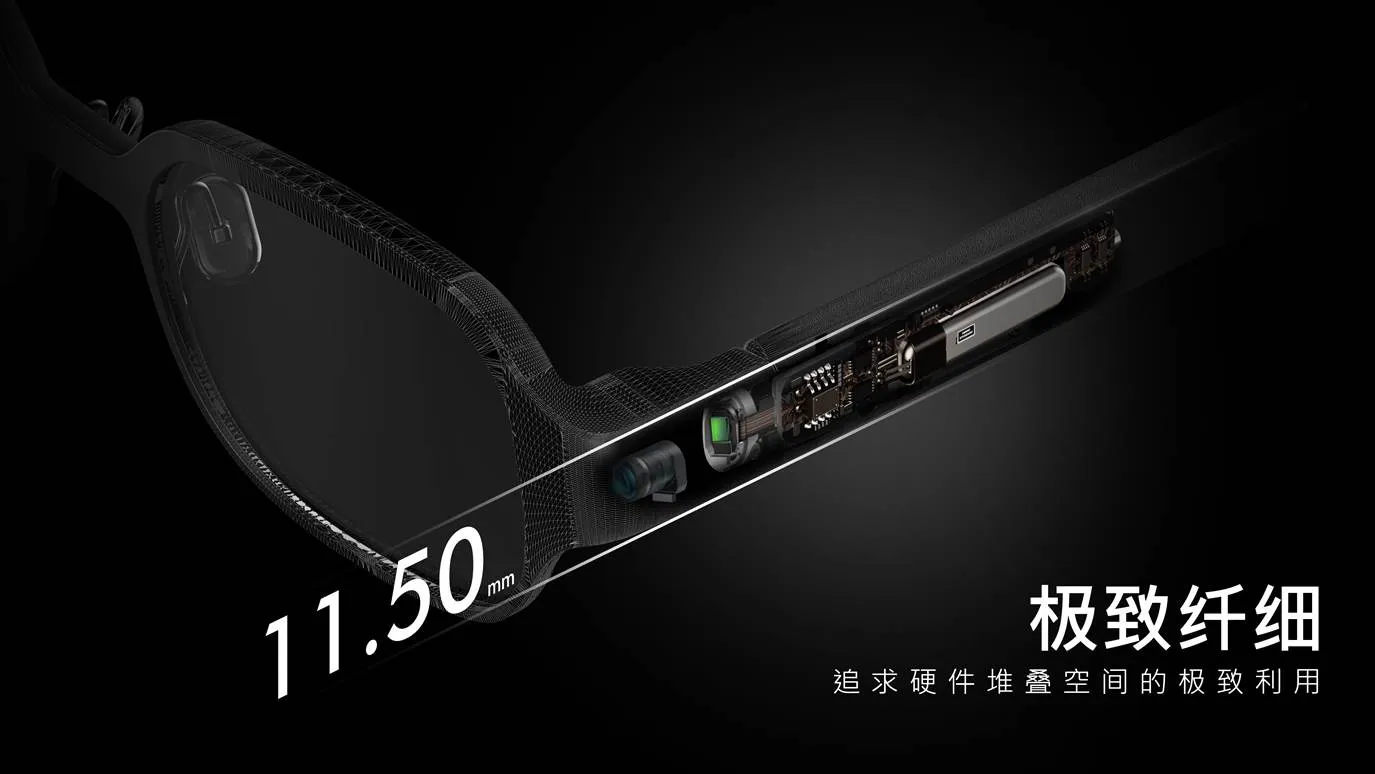

Slim temples
Extreme stacking brings 11.50mm slender temples, restoring the temple width of traditional glasses.
* The temple width of traditional plate glasses is between 10-15mm
* Huawei third-generation glasses, the widest part of the temple is 13mm
Lightweight
Applying unique all-resin diffraction waveguide technology, the weight of the whole machine can be as light as 38g.
* Using a flat lens, and monocular display, the estimated overall weight can be as low as 38g
* The weight of OPPO Air Glass including the frame is 53g
| Function | Spec | Description |
| Display | Green MicroLED | Customized myopia resin lens Do Not Disturb |
| System platform | MCU | |
| Self-developed RTOS | ||
| Interact | Directional audio | Balance experience and privacy |
| Dual microphone noise reduction | Multi-scene high-quality voice effects | |
| slide trackpad | ||
| Sensor | IMU | Rich interaction Adjust the brightness for the scene Optimize power consumption |
| light sensor | ||
| wear sensor | ||
| Total Weight | Around 40g | Wear it for a long time without getting tired |
| Battery life | Daily use of more than 5h | The battery capacity depends on the specific structural design typical use (reading messages, music)Support all-day use |
| Connectivity | Bluetooth 5.2 | wireless portable and out on various occasions |
| Magnetic charging |
|
Specification |
Parameters |
|
display |
640×480, FoV30° |
|
Audio frequency |
Directional open microphone |
|
Material |
Magal alloy with TR90 |
|
|
The music was played for 6 hours The maximum brightness was displayed for 1.5 hours Typical application conditions were 6 hours |
|
Interaction |
Slide touch bar physical button |
|
connectivity |
Bluetooth 5.1 App |
